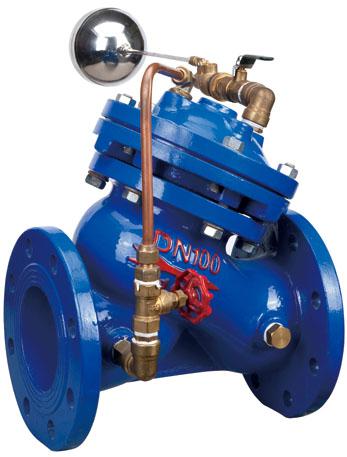

| 名稱：隔膜式遙控浮球閥F745X |
|
| ·詳細描述 |
|
|
三、主要外形及連接尺寸
|
DN
|
L
|
D
|
D1
|
n-d
|
H
|
|
1.0MPa
|
1.6MPa
|
2.5MPa
|
1.0MPa
|
1.6MPa
|
2.5MPa
|
1.0MPa
|
1.6MPa
|
2.5MPa
|
|
50
|
203
|
165
|
165
|
165
|
125
|
125
|
125
|
4-18
|
4-18
|
4-18
|
300
|
|
65
|
216
|
185
|
185
|
185
|
145
|
145
|
145
|
4-18
|
4-18
|
8-18
|
337
|
|
80
|
241
|
200
|
200
|
200
|
160
|
160
|
160
|
8-18
|
8-18
|
8-18
|
467
|
|
100
|
292
|
220
|
220
|
235
|
180
|
180
|
190
|
8-18
|
8-18
|
8-22
|
520
|
|
125
|
330
|
250
|
250
|
270
|
210
|
210
|
220
|
8-18
|
8-18
|
8-22
|
580
|
|
150
|
356
|
285
|
285
|
300
|
240
|
240
|
250
|
8-22
|
8-22
|
8-26
|
640
|
|
200
|
457
|
340
|
340
|
360
|
295
|
295
|
310
|
8-22
|
12-22
|
12-26
|
778
|
|
250
|
533
|
395
|
405
|
425
|
350
|
355
|
370
|
12-22
|
12-26
|
12-30
|
889
|
|
300
|
610
|
445
|
460
|
485
|
400
|
410
|
430
|
12-22
|
12-26
|
12-30
|
1010
|
|
350
|
686
|
505
|
520
|
555
|
460
|
470
|
490
|
16-22
|
16-26
|
16-30
|
1037
|
|
400
|
762
|
565
|
580
|
620
|
515
|
525
|
550
|
16-26
|
16-30
|
16-33
|
1264
|
|
450
|
864
|
615
|
640
|
670
|
565
|
585
|
600
|
20-26
|
20-30
|
16-36
|
1294
|
|
500
|
914
|
670
|
715
|
730
|
620
|
650
|
660
|
20-26
|
20-33
|
20-36
|
1324
|
|
600
|
1000
|
780
|
840
|
845
|
725
|
770
|
770
|
20-30
|
20-36
|
20-39
|
1600
|
|
700
|
1100
|
895
|
910
|
960
|
840
|
840
|
875
|
24-30
|
24-36
|
24-42
|
1750
|
|
800
|
1300
|
1015
|
1025
|
1085
|
950
|
950
|
990
|
24-33
|
24-39
|
24~48
|
1900
|
|
900
|
1400
|
1115
|
1125
|
|
1050
|
1050
|
|
28-33
|
28-39
|
|
2100
|
|
1000
|
1450
|
1230
|
1485
|
|
1160
|
1170
|
|
28-36
|
28-42
|
|
2400
|
|
1200
|
2000
|
1455
|
|
|
1380
|
|
|
32-39
|
|
|
2860
|
|
1400
|
2350
|
1675
|
|
|
1530
|
|
|
36-42
|
|
|
3200
|
|
